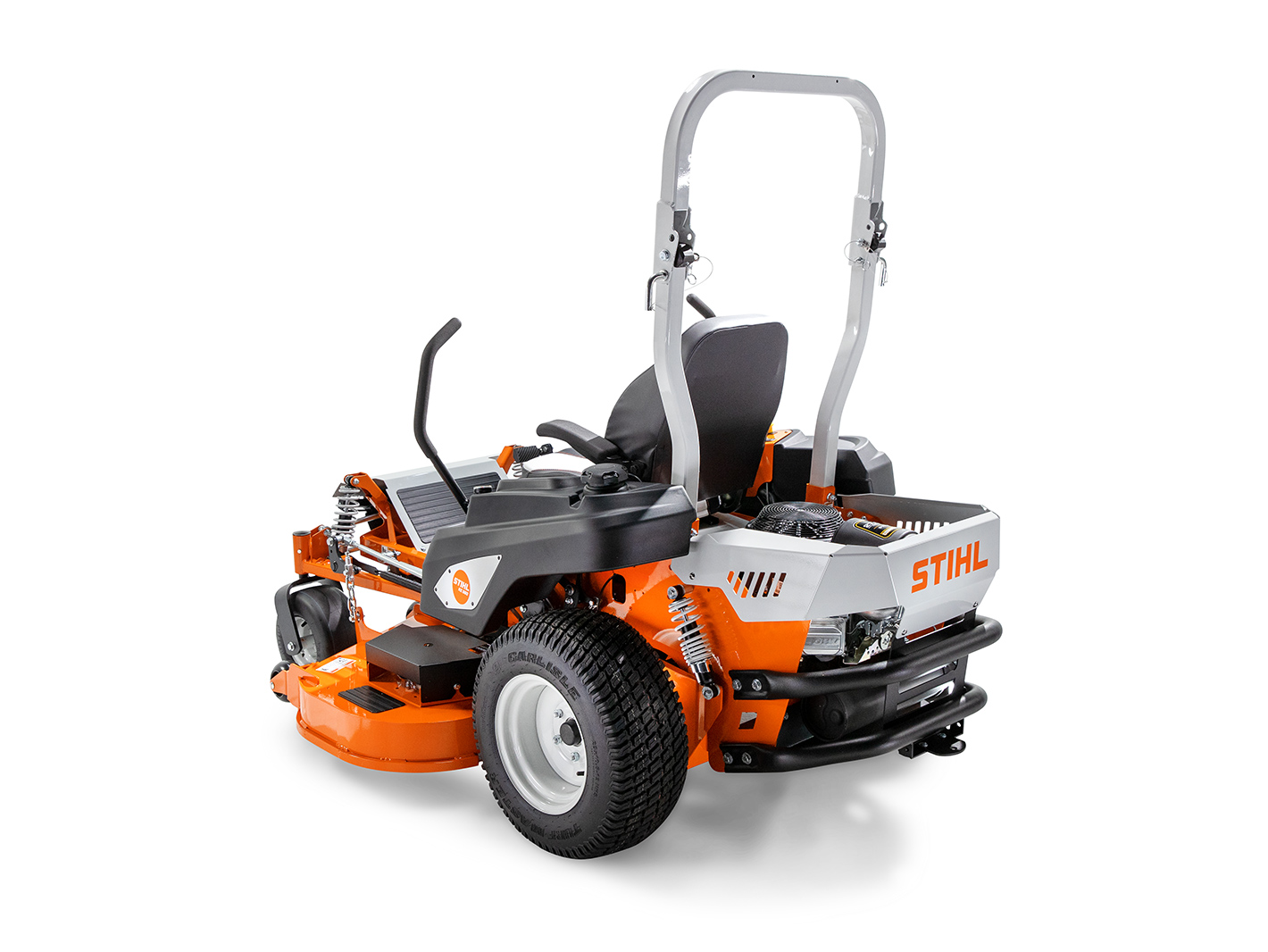

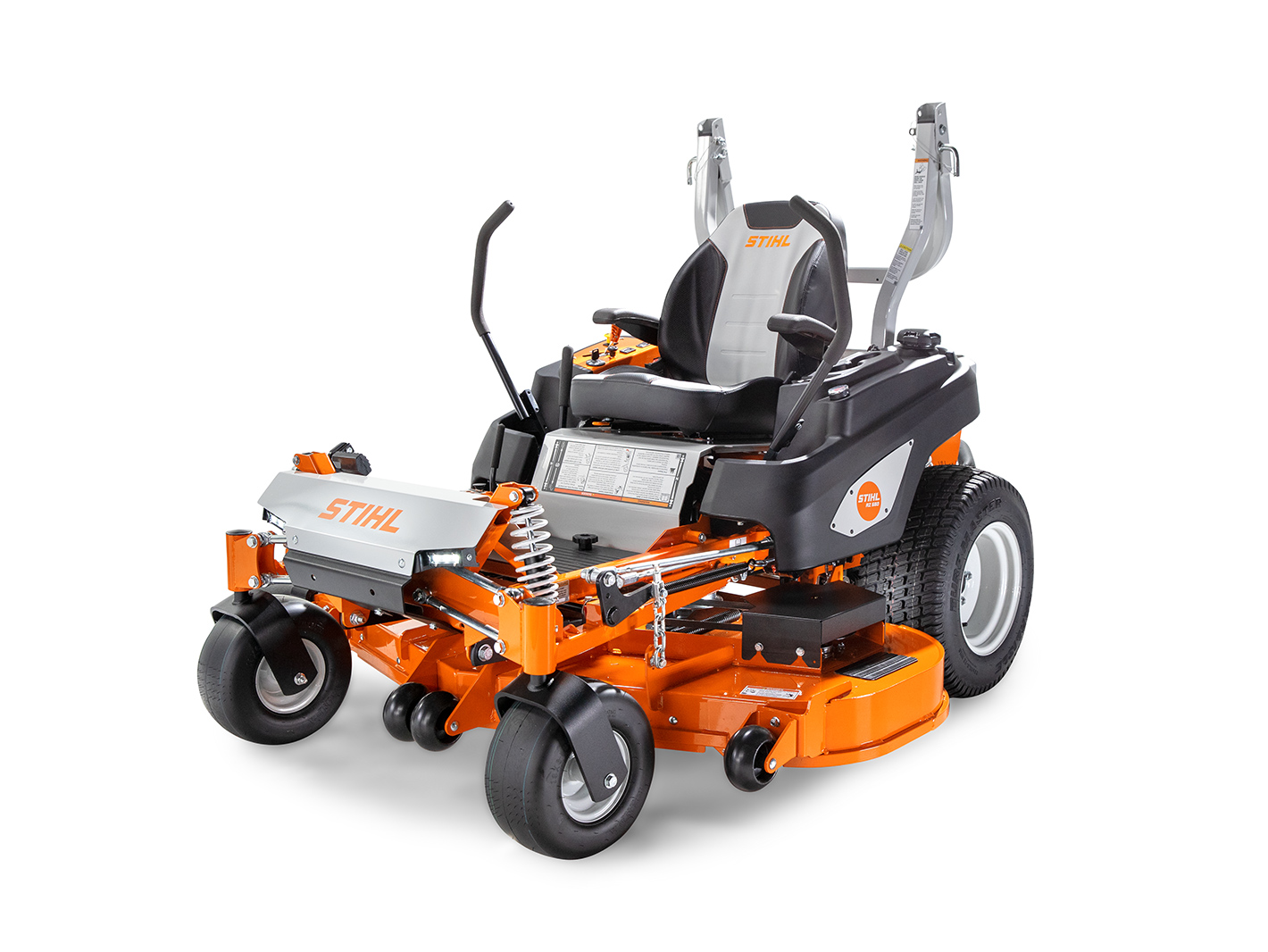

The STIHL RZ 500 Series offers a choice of a 52” or 60” mowing deck and a Briggs & Stratton® or Kawasaki carbureted engine – ideal for commercial use.

Whether you work on the farm or ranch or offer residential or commercial mowing services, STIHL RZ 500 Series zero-turn mowers are ideal for getting the most out of your mowing experience. With a choice of 52” or 60” mowing deck and a Briggs & Stratton® or Kawasaki carbureted engine, the STIHL RZ 500 Series gives users the power they need to mow like a pro. Commercial-grade Hydro-Gear® ZT-3400 transaxles offer a top forward speed of 10 mph and 5 mph in reverse for efficient cutting. An advanced four-wheel suspension system with mowing deck height compensation provides a comfortable ride and consistent cutting height. Create the ideal lawn with the customized options and exceptional performance of the STIHL RZ 500 Series.

Model Features

  • Integrated Cup Holders
    Conveniently keeps drinks secure and within reach.
  • Foot-operated Cutting Height
    Allows users to easily adjust the cutting height while seated.
  • Trailer Hitch
    This zero-turn mower features a rear trailer hitch for towing additional accessories and attachments*. *Accessories and attachments sold separately.
  • Greaseable Mower Deck Spindles
    Greaseable mower spindles allow for user maintenance and extend the life span of each spindle.
  • Commercial-grade Hydro-Gear® ZT-3400 Transaxles
    Hydro-Gear® ZT-3400 transaxles enable 10 mph forward ground speed and 5 mph in reverse, allowing for smooth and efficient cutting.
  • Flexible side rubber discharge chute
    Allows grass clippings to be released to the side of the mower and out of the way of the cutting path.
  • Four-wheel suspension system with independent front suspension and rear shock absorbers
    Adjustable to suit your yard’s terrain, the rear suspension uses shock absorbers to help stabilize the machine for a consistent cutting height and a smooth, comfortable ride.
  • The STIHL RZ 500 Series features a professional grade fabricated 52” or 60" mowing deck
    The professional-grade 52” or 60" fabricated mowing deck of the STIHL RZ 552 and STIHL RZ 552 K mowers provide durability and long life.
  • The STIHL RZ 552 and STIHL RZ 560 feature a Briggs & Stratton engine.
    The STIHL RZ 552 and STIHL RZ 560 zero-turn mowers feature a reliable 27-hp Briggs & Stratton engine.
  • The STIHL RZ 552 K and STIHL RZ 560 K feature a Kawasaki carbureted engine.
    The STIHL RZ 552 K and STIHL RZ 560 K zero-turn mowers feature a reliable 24-hp Kawasaki carbureted engine.
  • Made in America
    A majority of STIHL products sold in America are made in America of U.S. and global materials.
  • Two USB-A ports
    Two USB-A ports provide 3.15 amps of power to charge devices.
  • Independent front suspension with mower deck height compensation
    Independent front suspension features two control arms that connect to shock absorbers, designed to ensure wheels remain perpendicular to the ground throughout the range of travel.
  • Independent front suspension with upper and lower control arms
    The STIHL RZ 500 series’ independent front suspension with upper and lower control arms increases stability and offers a better quality ride.
  • Deluxe seat with armrests
    Armrests designed to ensure a comfortable ride throughout the job.
  • Flip-up floor pan
    Flip-up floor provides convenient serviceability and cleaning of the mowing deck.
  • Large fuel capacity
    Provides fuel coverage for large jobs and features a large opening for easy fueling. Plus, the fuel gauge is visible from the operator seat to monitor fuel level.
  • Roll Over Protection System (ROPS)
    The advanced ROPS features polyurethane blocks to prevent rattling while in motion and conveniently folds for easy storage and trailer transport between jobs.
  • Dual-function hour meter
    Dual-function hour meter tracks both run time and hours of mowing time to assist users in keeping up with regular maintenance tasks.
  • Efficient Two-belt mower drive system
    Two-belt mower drive system results in less strain and flex on the belts, allowing the belts to run cooler and enabling a longer lifespan and less maintenance.
  • Advanced Four-wheel suspension system with mowing deck height compensation
    The advanced four-wheel suspension system with mowing deck height compensation is designed to provide a smooth, comfortable ride and consistent cutting height.
  • Swingarm rear suspension with shock absorbers
    The adjustable rear suspension with shock absorbers are designed to help provide performance and comfort while mowing uneven surfaces.

Specifications

FUEL TANK CAPACITY
5.5 gallons
TRANSAXLES
Hydro-Gear® ZT-3400
FORWARD GROUND SPEED
10 mph
REVERSE GROUND SPEED
5 mph
FRONT TIRES
13 x 6.5-6 in.
REAR TIRES
23 x 10.5-12 in.
POWER SOURCE
Gas


Important Information

WARNING! Improper use of any power tool may cause serious or fatal injury. Read, understand and follow carefully the operating and safety instructions in your instruction manual before using such products.

STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.
