Battery Cut-off Machine

TSA 230

Review Rating (66)
SPECIAL OFFER
TSA 230
TSA 230
TSA 230
TSA 230
TSA 230
TSA 230
TSA 230
TSA 230

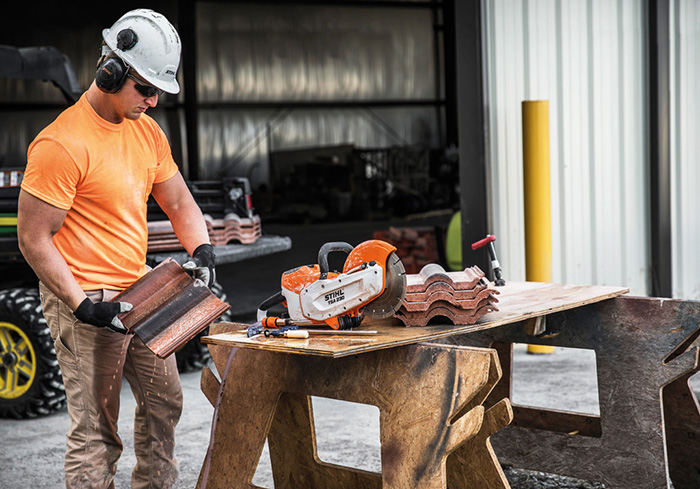

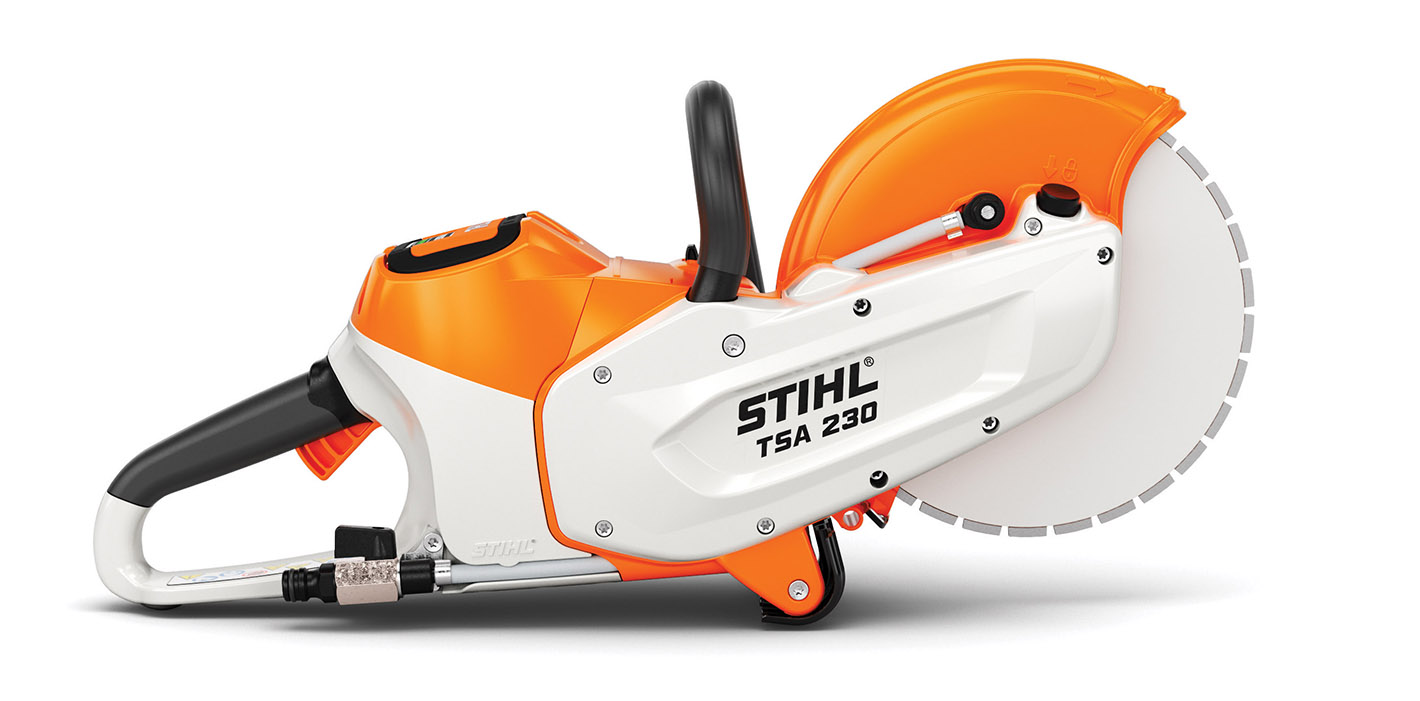

Commercial grade. The world's first Lithium-Ion-powered cut-off machine. Lightweight, easy to handle, and gets the job done fast.

STIHL introduces another world’s first – a cut-off machine powered by 36-volt Lithium-Ion battery technology. The TSA 230 STIHL Cutquik® cut-off machine starts instantly and changes the game for the jobsite, delivering maneuverability and solid cutting performance in a lightweight, compact package that can be used indoors. Its onboard water control helps suppress dust while a toolless wheel lock prevents wheel rotation when removing the wheel attachment bolt. And because it is battery powered, there is no air filter to maintain. The TSA 230 even provides great value – priced below its gasoline-powered counterpart. Groundbreaking innovation, grounded in quality engineering.

Run time may vary based on battery type, charge level and capacity, model, operating style and conditions. Batteries and chargers can be purchased separately or as a combined set with tool.

See the TSA in action - Watch Video!

View Our Usage Chart



Model Features

  • Reduced-Emission Engine Technology - Caring for Nature
    The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.

    More information

  • Lightweight Portability
    Great for maneuverability and extended use.
  • Sealed control unit
    Sealed control unit for improved water resistance while wet cutting.
  • Magnesium Guard
    The cutting wheel guard is made from lightweight and durable magnesium to improve maneuverability.
  • Spindle Locking Mechanism
    The spindle locking mechanism allows the user to lock the wheel rotation for easier removal of the wheel.

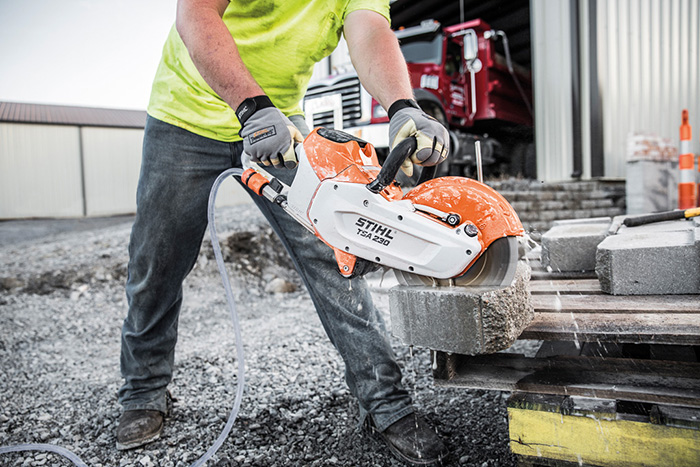

  • Water Connection
    Water connection with shut-off valve and quick connector.
  • Sealed Belt Drive
    Maintenance-free sealed belt drive.
  • Electronic Coaster Brake
    Stops wheel after use.
  • STIHL Electric Motor
    Maintenance-free brushless DC motor features low noise levels and reduced vibration.

Specifications

POWER SOURCE
Battery
WEIGHT
8.6 lbs.
MAXIMUM CUTTING DEPTH
2.75 in.
MAXIMUM WHEEL SIZE
9 in.
ARBOR SIZE
.875 in.

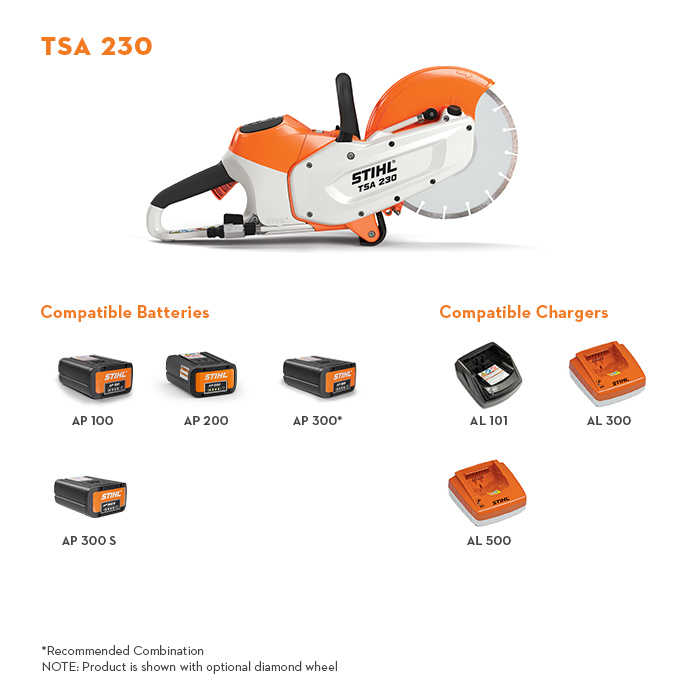

BATTERY SYSTEM
AP Series
RUN TIME (w/ AP 200) Up to
14 Minutes
RUN TIME (w/ AP 100) Up to
7 Minutes
RUN TIME (w/ AP 300 S) Up to
22 Minutes
RUN TIME (w/ AP 300) Up to
18 Minutes
VOLTAGE
36V
Note: This product is for professional use only. The battery working time specifications for each battery charge are estimates and may vary depending on how the tool is used and what is being cut.

Important Information

WARNING! Improper use of any power tool may cause serious or fatal injury. Read, understand and follow carefully the operating and safety instructions in your instruction manual before using such products.

STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.

WARNING! Never use carbide-tipped, wood cutting or circular saw blades on cut-off machines. They can cause severe personal injury or death from reactive forces, blade contact or thrown tips. Never cut wood of any type.

WARNING! Improper use of any power tool may cause serious or fatal injury. Read, understand and follow carefully the operating and safety instructions in your instruction manual before using such products.

STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.
